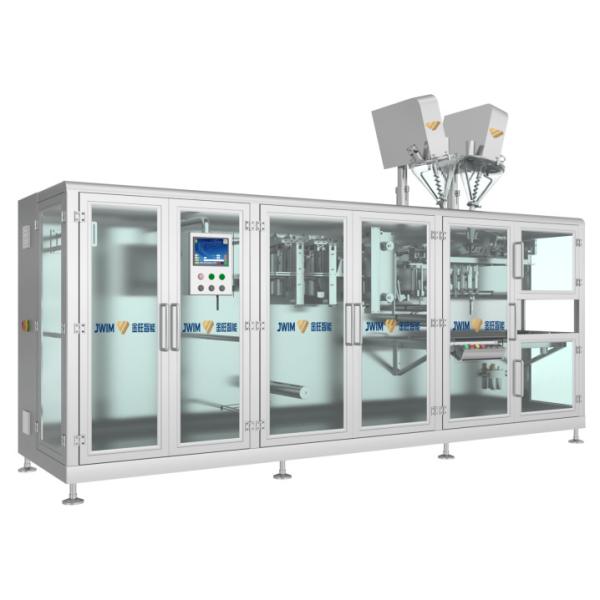

DXD-180D Automatic Horizontal Pouch Packing Machine

Name: DXD180D Automatic Horizontal Pouch Packing Machine
Brand: JWIM
Price: 1 USD

Buy cheap DXD-180D Automatic Horizontal Pouch Packing Machine product

Brand Name : JWIM

Model Number : DXD-180D

Certification : CE，ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1 set per month

Delivery Time : 15-90 work days

Packaging Details : wooden cases

Machine name : DXD-180D Automatic Horizontal Pouch Packing Machine

Machine frame : SUS304

Applicable pouch : Single pouch/Double pouches

Packing volume : Regular: ≤100ml (single pouch), ≤50×2=100ml (double pouches)

Accuracy : ±1%

Power Source : Three Phase, AC380V, 50Hz

Power : 6KW

Air Consumption : 840L/MIN

Dimension : 3456×1000×1510mm(L×W×H)

Weight : 1950 KG

Control : PLC

power unit : Servo motor

Contact Now

DXD-180D Automatic Horizontal Pouch Packing Machine

Introduction:

DXD-180D Automatic Horizontal Pouch Packing Machine includes motor film release, bag forming, bag bottom sealing, middle sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transfer, bag top sealing and other mechanisms. The motor drives each cam on the main shaft to complete the coordinated action of each mechanism, and the encoder on the main shaft feeds back the position signal. Under the programmable control of PLC. The machine has reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder,granule, suspending agent, emulsion, water agent and other materials on the machine. The whole machine is made of SUS304, which has good anti-corrosion effect on highly corrosive materials. Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.

Parameters of 200g pouch packaging line

1	Capacity	40-60Pouches/Min(Single pouch) (40-60)×2=80-120Pouches/Min(Double pouches) According to the physical properties of the raw materials and the different feeding.
2	Applicable pouches pattern	Single pouch, Double pouches
3	Applicable pouches size	Single pouch: 70×100mm(Min)；180×220mm(Max) Double pouches: (70+70)×100mm(Min) (90+90)×160mm(Max)
4	Volume	Regular :≤100ml(Single pouches) ≤50×2=100ml(Double pouches) *According to the physical properties of the raw materials and the different feeding devices.
5	Precision	±1% *According to the physical properties of the raw materials and the different feeding devices.
6	Roll film size	Inner diameter:Φ70-80mm Outer diameter:≤Φ500mm
7	Dust removal pipe diameter	Φ59mm
8	Power supply	Three Phase AC380V 50Hz/6KW
9	Air consumption	840L/Min
10	External dimension	3456×1000×1510mm(L×W×H)
11	Weight	About 1950Kg

Auxiliary Machine of 200g Pouch Packaging Line

SFJ-2 Powder Elevator

Technical Parameters:

1	Power	Three Phase AC380V 50HZ/1.5KW
2	Pipe diameter	Φ102mm
3	Transportation volume	500-1200kg/hour (actual capacity depends on the characteristic and density of the material)
4	Hopper volume	0.12m³
5	Weight	About 100kg
